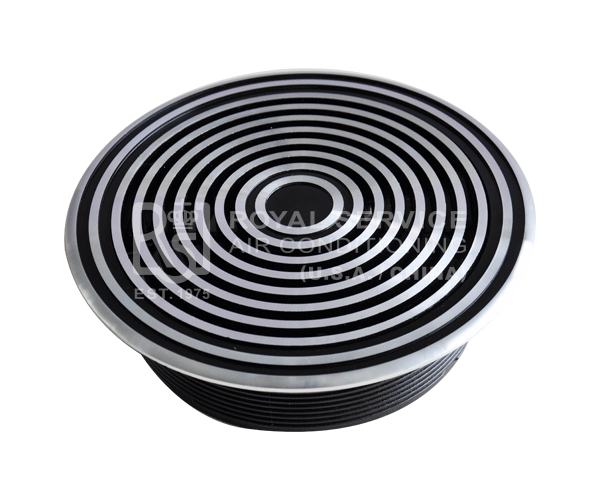

UFD Floor-Type Air Induction Swirl Diffusers (Fig. 14)

Designed for installation in raised floors, these diffusers deliver supply air in a swirl pattern to ensure efficient mixing and minimize stratification. Airflow direction can be adjusted using a floor-mounted dial, and the integrated dust hopper allows for easy cleaning and maintenance.

Overview

• Installed in the floor supply air pathway, pressurized to maintain consistent airflow

• Swirl discharge pattern promotes effective air mixing and reduces stratification

• Adjustable outlet with wind flow direction dial

• Mounted directly to raised floor systems, without the need for a plenum

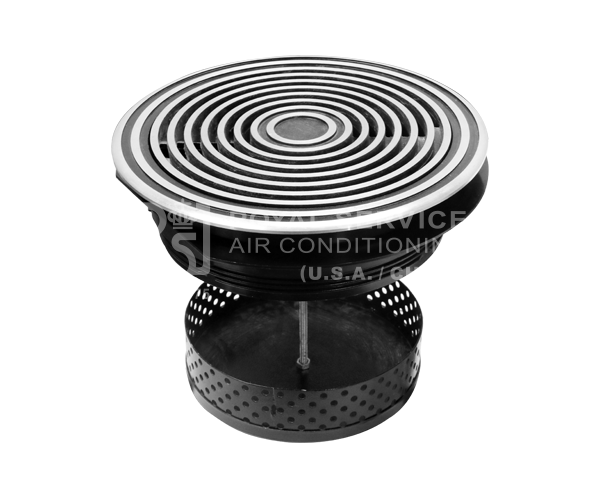

• Integrated dust hopper for simplified cleaning

Features

• Face panel options: Aluminum alloy with electrophoretic finish, or optional ABS plastic

• Efficient air mixing for uniform comfort

• Gentle, quiet operation for occupant satisfaction

• Dust hopper for easy maintenance

• Air adjusting hopper for precise airflow contro
